A 1-lead ECG records one electrical view of the heart. A 3-lead ECG records three views at the same time. The additional views can provide more information about waveform shape and help distinguish a true rhythm change from noise, but they do not make every 3-lead recording automatically more accurate.
Short answer: a clean 1-lead recording can be useful for longer-term heart-rate and rhythm monitoring. A 3-lead system provides more spatial context when morphology matters. Neither is a substitute for a standard 12-lead ECG when a clinical question requires one.
1-lead vs 3-lead ECG: quick comparison
| 1-lead ECG | 3-lead ECG | |
|---|---|---|
| Electrical views | One | Three recorded simultaneously |
| Typical setup | Often two electrodes, but designs vary | Traditional systems often use five to seven electrodes, but designs vary |
| Main strength | Simpler setup and practical longer recordings | More waveform and spatial context |
| Main limitation | Limited information about the spatial orientation of P, QRS, ST, and T waves | Still provides much less spatial information than a 12-lead ECG |
| Recording duration | Determined by the device, battery, memory, and protocol, not by lead count alone | Determined by the device and protocol, not by lead count alone |
| Common uses | Heart-rate trends, beat timing, rhythm monitoring, symptom correlation | Ambulatory monitoring when several views help interpretation |
The number of leads is only one part of the system. Electrode placement, signal quality, sampling, recording duration, analysis software, and clinical interpretation can matter just as much.
What does a lead mean in ECG?
An electrode touches the body. A lead is the electrical view calculated from the voltage difference between electrodes. That is why the number of electrodes and the number of leads are not the same thing.
In traditional ambulatory ECG configurations, a single lead is commonly obtained with two electrodes, while a 3-lead system may use five to seven. Other designs exist, including compact patches and reconstructed lead systems. Check the exact manufacturer's configuration instead of inferring the number of leads from the number of visible contacts.
A standard resting 12-lead ECG is another category. It normally uses ten electrodes to produce twelve views from different directions. A 3-lead monitor is not a smaller equivalent of that examination.
What can a 1-lead ECG show?
A 1-lead ECG can record the timing and shape of repeated cardiac cycles from one direction. With a clean signal, it can support heart-rate calculation, RR intervals, rhythm review, and correlation between a recorded episode and a symptom or activity marker.
Single-lead recordings can perform very well in atrial fibrillation and other rhythm-monitoring workflows. The useful question is not whether one lead "works", but which device, algorithm, recording quality, population, and reference method produced the result.
The limitation is the single viewpoint. Some waves may be small or difficult to see, and the recording lacks the spatial information needed for many morphology, conduction, ST-segment, and localization questions.
What does a 3-lead ECG add?
Three simultaneous views let a reviewer compare how the same beat appears from different directions. This can make P waves or QRS morphology clearer in one channel than another and can help distinguish a physiological event from an artifact affecting only part of the setup.
That additional context can be useful in Holter monitoring and telemetry, but the benefit depends on correct electrode placement and good contact. More channels can also mean more electrodes, more setup work, and more opportunities for a loose contact. A poor 3-lead recording is not better than a clean 1-lead recording simply because it contains more channels.
Is a 3-lead ECG more accurate than a 1-lead ECG?
There is no useful universal percentage. Accuracy must be defined for a specific task: detecting beats, calculating heart rate, classifying a rhythm, measuring an interval, or answering a clinical question.
For beat timing and longer rhythm observation, a validated 1-lead device may be sufficient. When waveform morphology or the direction of electrical activity matters, multiple leads provide information that one lead cannot. Expert guidance recommends 12-lead ambulatory ECG, rather than a reduced-lead recording, for questions involving detailed QRS morphology, ST-segment patterns, Brugada syndrome, ischemia, or QT dynamics.
The useful comparison is therefore not "less accurate versus more accurate". It is "one view versus more views for the question being asked".
What the comparison data actually show
Published results make the trade-off much clearer than a generic accuracy claim:
| Study and setup | Result | Practical meaning |
|---|---|---|
| 220 cardiology outpatients enrolled, with 208 recordings analyzed; Zenicor One single-lead ECG compared with 12-lead ECG for atrial fibrillation | 98% sensitivity and 99% specificity | A tested single-lead workflow can be highly effective for a defined rhythm question |
| Primary care; cardiologists read a handheld single-lead ECG against a 12-lead reference | 100% sensitivity and specificity for AF or flutter; 90.9% and 93.5% for any rhythm abnormality; only 46.4% sensitivity for conduction abnormalities | One lead was strong for rhythm but missed more conduction findings |
| 200 patients with atrial fibrillation; single-lead patch and Holter compared during the same first 24 hours, then the patch continued | Both detected AF in 40 of 200 patients during the first 24 hours; extending the patch to 72 hours increased detection to 64 of 200 | Recording duration can matter more than adding leads when episodes are intermittent |
| 969 real-world single-lead recordings from five consumer devices; automated classifications and manual physician review | Automated AF sensitivity ranged from 58% to 85% and specificity from 69% to 79%; manual review determined the rhythm in 955 of 969 recordings | A usable ECG trace and expert review can be more valuable than the device's automatic label |
These numbers describe the tested devices and protocols, not every single-lead ECG. They also show why "3-lead is more accurate" is the wrong shortcut: lead count, recording time, signal quality, algorithm, and the clinical target all change the result.
Which ECG setup should you choose?
For personal or research measurements, consider:
- whether you need the raw ECG waveform or only heart rate;
- whether the device exposes RR intervals and signal-quality context;
- how long the recording must last;
- whether the electrodes remain stable during the intended activity;
- how artifacts and missing data can be reviewed or exported.
For a medical investigation, the recording method should match the suspected problem and how often it occurs. Short, frequent events may call for a different workflow than rare episodes that require weeks of monitoring.

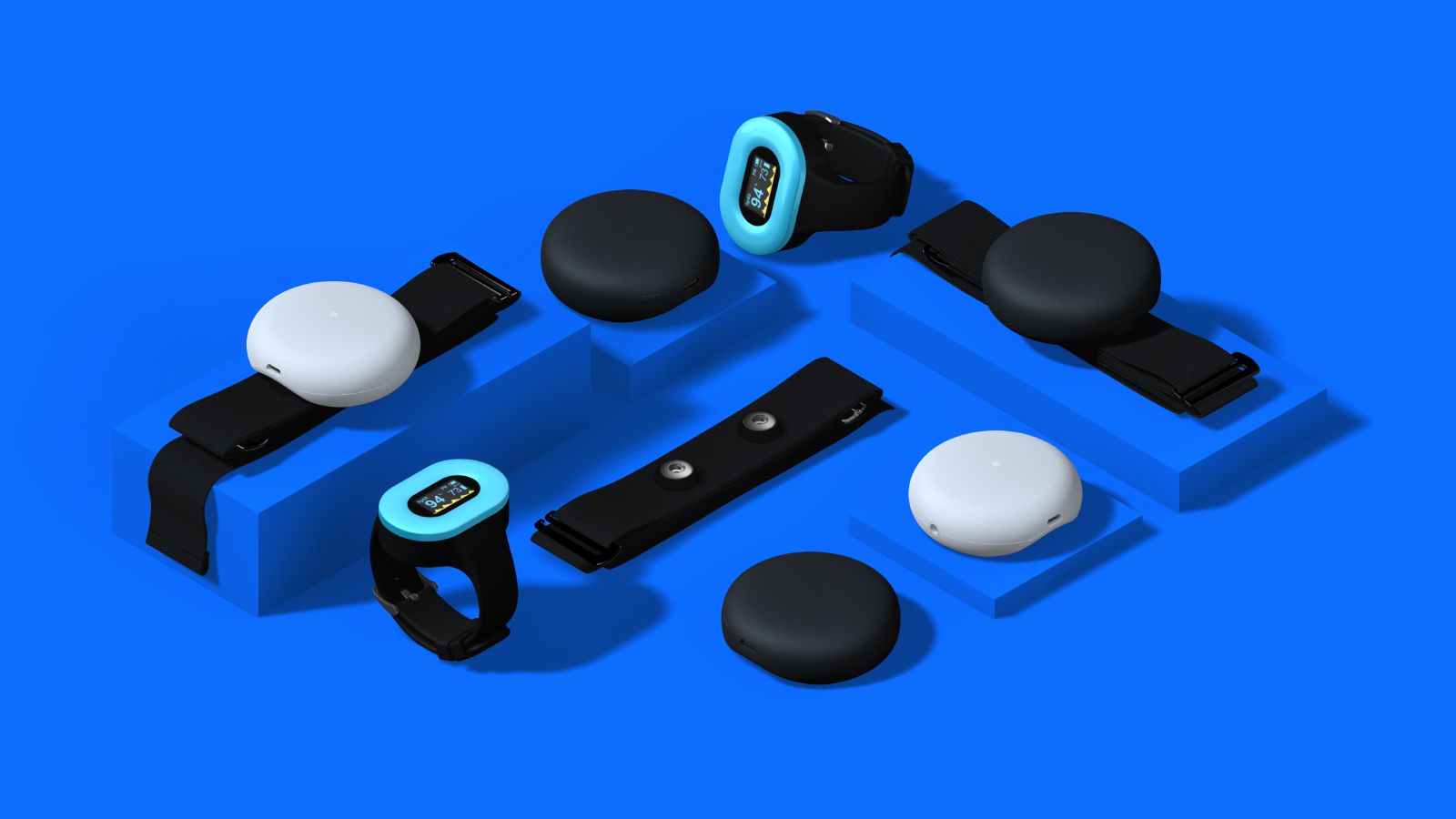

Where Aidlab products fit
Aidlab 1 is a chest-worn wellness and research device that records 1-lead ECG and derives heart rate, RR intervals, and HRV. It also records breathing, skin temperature, movement, and body position. It is not a medical device and does not replace a clinical ECG or medical interpretation.
Aidlab 2 is a separate next-generation wellness and research system. Aidmed One is a separate medical system with 1-lead ECG intended for professional care workflows. Its suitability for a particular examination depends on its current certified scope, accessories, instructions for use, and the clinician's protocol.
If your main question is training or recovery rather than clinical diagnosis, see chest strap vs wrist heart-rate monitoring and how to measure HRV.
Common questions
Does a 3-lead ECG use three electrodes?
Not necessarily. Leads are electrical views, not physical sensors. Traditional 3-lead ambulatory configurations often use five to seven electrodes, while other designs use different arrangements.
Can a 1-lead ECG detect atrial fibrillation?
A validated single-lead device can support atrial fibrillation detection or monitoring. Published studies have reported sensitivity and specificity of at least 98% for particular devices and protocols, while real-world automated results across consumer devices have varied much more widely.
Is a 3-lead ECG the same as a 12-lead ECG?
No. A 3-lead recording provides three simultaneous electrical views. A standard 12-lead ECG provides twelve views and is used when broader spatial and morphological information is required.
